Trap valve station tvs

General Description

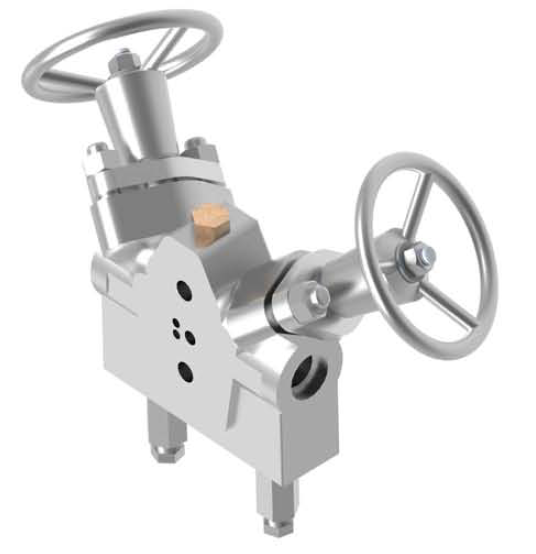

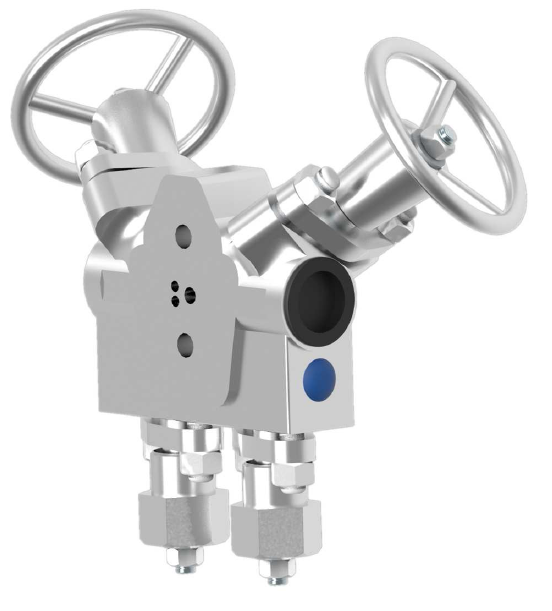

Bitherm TVS is a compact combination of valves and trap performing all the functions of steam trap module, permitting discharge of condensate as well as maintenance when required. Steam traps with universal connections can be fitted to a Bitherm TVS.

Request more information

Operating Conditions
Connections
Materials
Documentations

Descripcción detallada

General Description

Bitherm TVS is a compact combination of valves and trap performing all the functions of steam trap module, permitting discharge of condensate as well as maintenance when required. Steam traps with universal connections can be fitted to a Bitherm TVS.

No hay videos disponibles para este producto

Reseñas de los usuarios acerca de este producto

	P64Ti	P110Ti
Max. operating pressure	64 bar	110 bar
Max. differential pressure	64 bar	110 bar
Max. Temperature	550 °C	550 °C

Butt Weld

Socket Weld

Flange ANSI 300/600#

Other connections upon request.

Cover	Alloy A387 GR12 CL2
Body	Alloy A387 GR12 CL2
Top cap	S. steel AISI 303
Screw	ASTM A193 B7
Nut	ASTM A194 2H
Seat	S. steel AISI 420(*)
Valve	S. Steel AISI 440B(*)
Bimetals	Alloy. 38/7NiCr & 19/7NiCr
(*) Coated by Titanium Nitride (TiN).
Optional: Internal filter Stainless steel AISI 304
